Features:

1、Max. gluing speed will be 11000pcs/hour, and stitching speed will be 6000pcs/hour, which improves productivity greatly.

2、The whole machine adopts PLC, touch screen combined with Servo Motor for controlling can also adjust motorized by Button. Baffle, Stitching distance, Stitching quantities are automatic adjusted by input data; Paper lifting, Folding, Stitching head belts, Squaring, Creasing, Distance are motorized adjusted.

3、Paperboard feeding, gluing, folding, stitching, adjusting, counting and stacking can be done automatically.

4、Feeding unit designed with vacuum suction, and adopted leather belt for paperboard delivery.  5、It equipped creasing and re-creasing function so that even more accurate when folding.

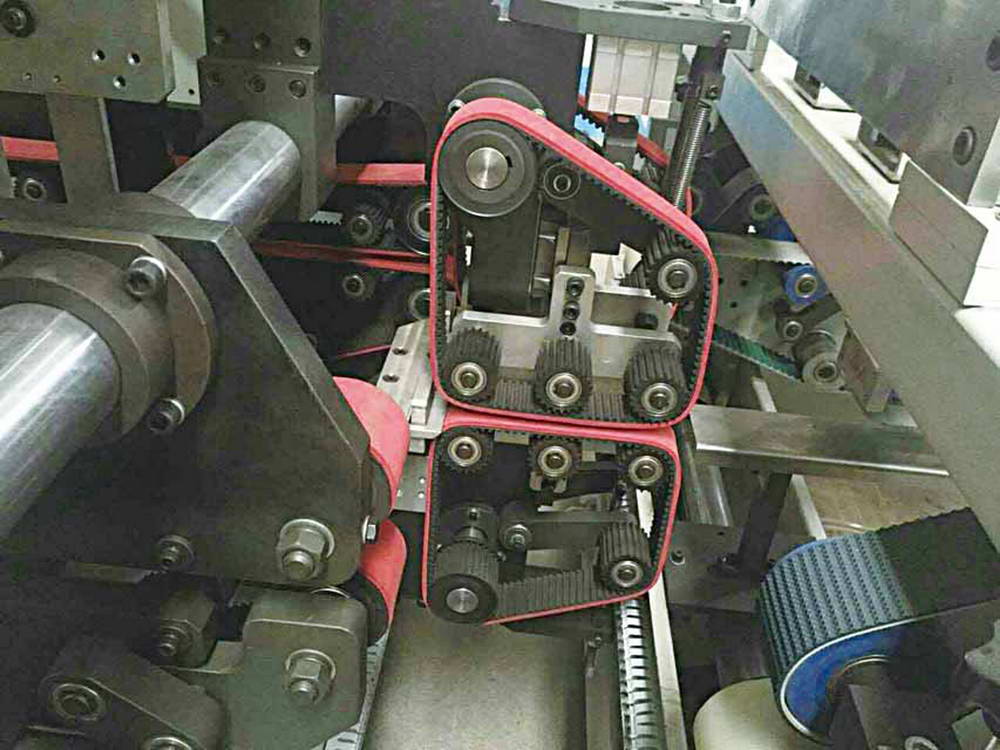

6、Adopted timing belts for main driver, which conveys paperboard precisely.

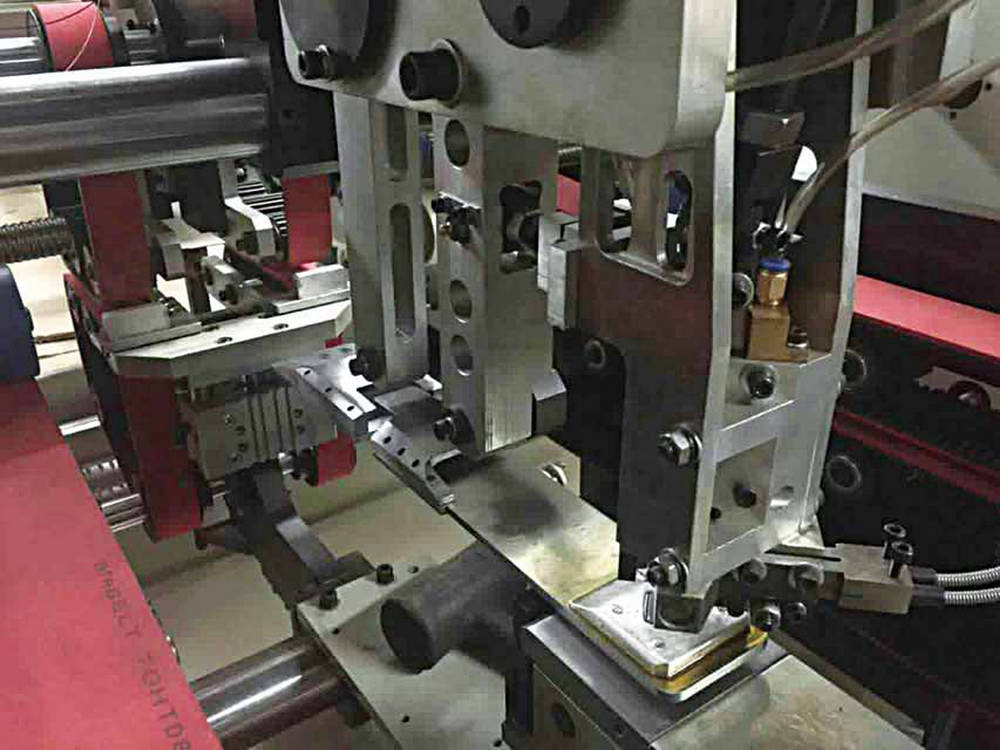

7、The stitching unit equipped with 5 groups servo motor, synchronous matching with flapping, stitching, and conveying.

• Equipped with two servo motor for flapping, to ensure carton is well squared.

• Independent servo control to make sure accurate stitching distance, stitching quantities can be adjusted.

• Independent servo control of Upper & Lower synchronous belts, perfectly matching with stitching heard, to make sure accurate transfer.

• Conveyor belts can be adjusted to correct Scissors shape tail, folding position can be micro-adjusted to control big & small gap.

8、Lifting splicer is equipped between Stitching & Counter Ejector Unit, which makes more easy maintain of Stitching Unit.

9、Auto counting, squaring, stacking, and conveying in Counter Ejector Unit.

10、Can easy match with automatic strapping machine.

11、 Can be match with auto box turning system according to customer’s requirements.
