FEATURES

1、Fastest gluing speed should be 120m/min,which improvesproductivity greatly.

2、The whole machine adopts PLC and touch screen and Button for controlling.

3、Paperboard feeding, gluing, folding, adjusting, counting and stacking can be done automatically.

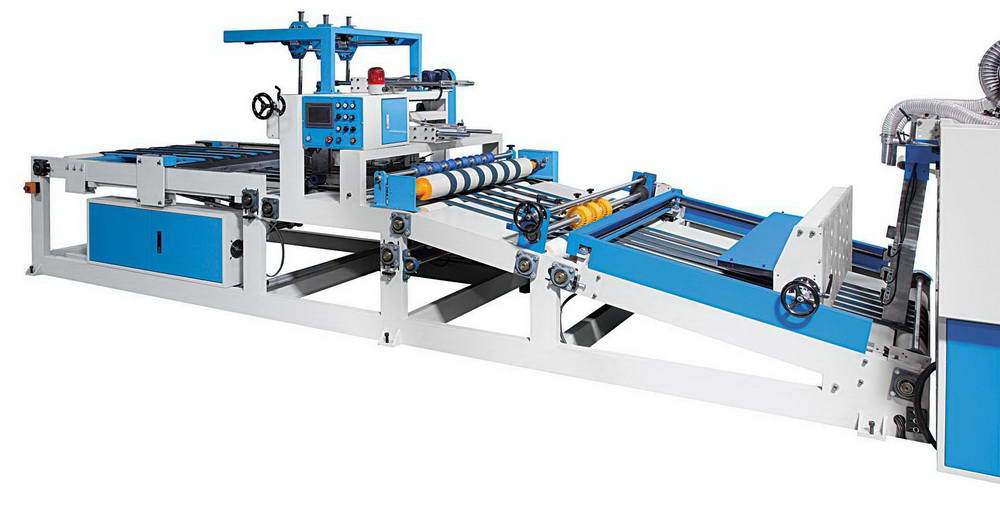

4、Feeding unit designed with vacuum suction, and adopted leather belt for paperboard delivery.

5、lt equipped creasing and re-creasing function in order to be even more accurate when folding.

6、Automatic DUAL SQUARER, lower defective rate.

7、lmproving folding accuracy if happen paper skew throuht differential adjusting function. Scissors shape tail could  not happen.

8、Automatic accounting, squaring then stacking. All cartons can be piled up according to a certain quality. Pre-set the producing quantity is available.

9、There is a space for temporary storage and squarer after folding and gluing, to ensure the cartons well-glued and fixed.

10、Gap adjustment is manually controlled and with dial show.

11、ln line with automatic delivery stand is available.
